Profile Projector/Optical Comparators/Shadow graph

Optical comparator Horizontal PH 330/440 NEO

The Dynascan Digital Comparator is the latest evolution in optical measurement technology with crystal clear color images
High accuracy Telecentric Optics and Image Grabbing Software enable instant automatic inspection in the CNC mode.
The machine can also be used as a simple Optical Comparator in the Manual or Motorized mode. The Dynascan Digitial Comparator is a truly versatile “all in one” machine for inspecting a wide variety of parts.

Horixontal Light Path
All Steel Constrution
Tilting Lamo House

Color Image
Three Lens Turret
Twin Beam Surface Illumination

Specialization Download Brochure

Specifications	Digital Comparator Model 400H
CAMERA	2 MEGA PIXEL CMOS COLOR CAMERA
PC / MONITOR	HIGH END PC WITH 24 INCH HIGH RES MONITOR
LENS	HORIZONTAL, BI TELECENTRIC, LARGE DEPTH OF FOCUS, DISTORTION FREE
MAGNIFICATION	10X TO 120X OBJECTIVE LENSES
FIELD OF VIEW	32 x 28 mm (BASED ON LENS USED)
ON SCREEN ACCURACY	2+(L/100) MICRONS
RESOLUTION	1 MICRON
REPEATABILITY	2 MICRON
WORKSTAGE (TABLE TOP AREA)	450 x 160 mm, TWO DOVETAIL SLOTS, X-AXIS QUICK RELEASE
MEASURING RANGE X / Y AXIS	300 x 150 mm, 70 mm FOCUSING
300 x 150 mm, 70 mm FOCUSING	1060 x 600 x 1040 mm / 250KG (APPROX)
MEASURING SYSTEM / PROTRACTOR	BUILT IN LINER SCALES / ROTATING CROSS HAIR
PROFILE / SURFACE LAMPS	MULTI CHANNEL LED RING LIGHTS & PROFILE LIGHT
POWER SUPPLY	100 / 240 V AC, 50/60HZ, 400 WATTS, I PHASE
OPTIONAL ACCESSORIES	SWIVELING VICE, PAIR OF V BLOCKS WITH CENTRES, VERTICAL WORK PIECE HOLDER, REVOLVING FIXTURE, PEDESTAL STAND
AMBIENT CONDITIONS	10 TO 40 DEGREES CELSIUS
SOFTWARE FEATURES	DYNASCAN VISION MEASURING SOFTWARE
INSTANT MEASUREMENT	ONE TOUCH INSTANT MEASUREMENT, PROGRAMMING
AUTO-CALL	AUTOMATIC PART RECOGINITION AND RECALL
AUTO-ALIGN	AUTOMATIC PART ORIENTION AND ALIGNMENT
MEASUREMENTS	LINES, ARCS, CIRCLES,SLOTS, BLOBS, DISTANCES,ANGLES,16000 FEATURES, MULTI POINT / BATCH MEASUREMENT, SUB PIXEL PROCESSING AND POINT FILTER FOR ACCURACY
TOLERANCES	LENGTH, DIAMETER, ANGLES, AREA CONCENTRICITY, FORM ERROR, ISO STANDARDS
REPORTS	CSV, TSV, *TXT
CAD EXPORT/IMPORT	DXF FILE OF FEATURES, NOMINAL VALUES, TOLERANCE

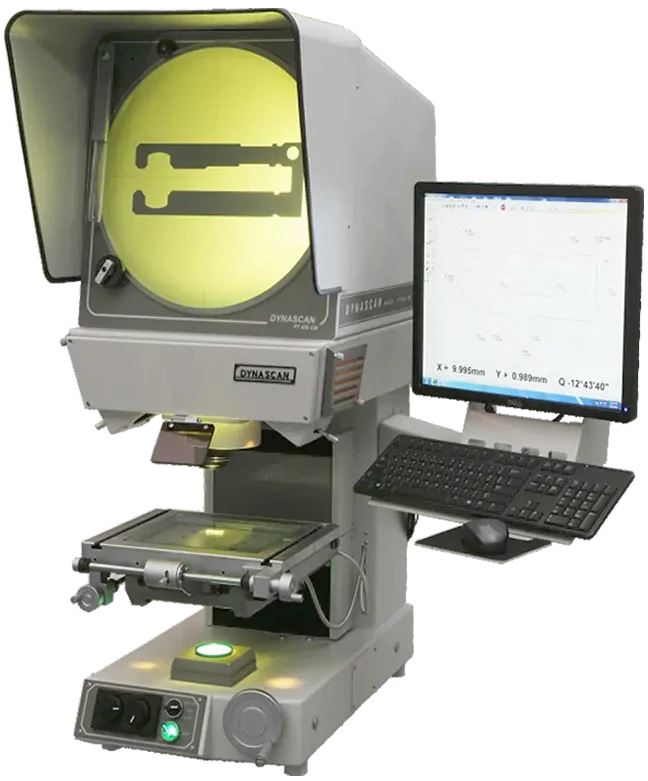

OpticaL comparator vertical PT 330/440 NEO

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum. Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium, totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui

Vertical Light Path
All steel Construction
Color Image

Three Lens Turret
Twin Beam Surface illumination

Specialization Download Brochure

Specifications	Digital Comparator Model 400H
CAMERA	2 MEGA PIXEL CMOS COLOR CAMERA
PC / MONITOR	HIGH END PC WITH 24 INCH HIGH RES MONITOR
LENS	HORIZONTAL, BI TELECENTRIC, LARGE DEPTH OF FOCUS, DISTORTION FREE
MAGNIFICATION	10X TO 120X OBJECTIVE LENSES
FIELD OF VIEW	32 x 28 mm (BASED ON LENS USED)
ON SCREEN ACCURACY	2+(L/100) MICRONS
RESOLUTION	1 MICRON
REPEATABILITY	2 MICRON
WORKSTAGE (TABLE TOP AREA)	450 x 160 mm, TWO DOVETAIL SLOTS, X-AXIS QUICK RELEASE
MEASURING RANGE X / Y AXIS	300 x 150 mm, 70 mm FOCUSING
300 x 150 mm, 70 mm FOCUSING	1060 x 600 x 1040 mm / 250KG (APPROX)
MEASURING SYSTEM / PROTRACTOR	BUILT IN LINER SCALES / ROTATING CROSS HAIR
PROFILE / SURFACE LAMPS	MULTI CHANNEL LED RING LIGHTS & PROFILE LIGHT
POWER SUPPLY	100 / 240 V AC, 50/60HZ, 400 WATTS, I PHASE
OPTIONAL ACCESSORIES	SWIVELING VICE, PAIR OF V BLOCKS WITH CENTRES, VERTICAL WORK PIECE HOLDER, REVOLVING FIXTURE, PEDESTAL STAND
AMBIENT CONDITIONS	10 TO 40 DEGREES CELSIUS
SOFTWARE FEATURES	DYNASCAN VISION MEASURING SOFTWARE
INSTANT MEASUREMENT	ONE TOUCH INSTANT MEASUREMENT, PROGRAMMING
AUTO-CALL	AUTOMATIC PART RECOGINITION AND RECALL
AUTO-ALIGN	AUTOMATIC PART ORIENTION AND ALIGNMENT
MEASUREMENTS	LINES, ARCS, CIRCLES,SLOTS, BLOBS, DISTANCES,ANGLES,16000 FEATURES, MULTI POINT / BATCH MEASUREMENT, SUB PIXEL PROCESSING AND POINT FILTER FOR ACCURACY
TOLERANCES	LENGTH, DIAMETER, ANGLES, AREA CONCENTRICITY, FORM ERROR, ISO STANDARDS
REPORTS	CSV, TSV, *TXT
CAD EXPORT/IMPORT	DXF FILE OF FEATURES, NOMINAL VALUES, TOLERANCE

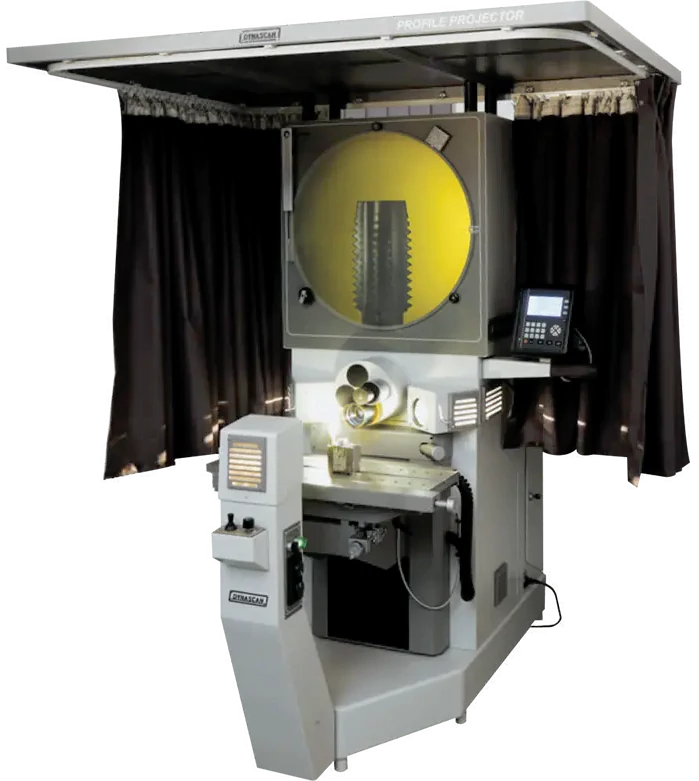

Optical comparator Horizontal PH 500/600NEO

Horizontal Light Path
Heavy Duty Workstage
Heavy Duty Workstage

Applications include large
heavy components like lead screws
crank shafts, broaches, gears
engine blocks and similar components

Specialization Download Brochure

Specifications	OPTICAL COMPARATOR Model PH 500 HORIZONTAL
SCREEN: FINE GRAIN GROUND GLASS	500 mm DIA
LENS AXIS	HORIZONTAL
ELECTRONIC PROTRACTOR	SWITCHABLE DEGREE / DECIMAL, 1 MINUTE / 0.01 DEGREE, DISPLAY RANGE: +/-360 DEGREE, ABS/INC,
	ZERO SETTING
MAGNIFICATIONS : STANDARD	10X
OPTIONAL	20X, 50X WITH 3 STATION TURRET FOR SAFETY, EASE OF USE
ON SCREEN ACCURACY	+/- 0.05% ON PROFILE AND SURFACE
WORK STAGE TABLE TOP AREA	550 x 200 mm, TWO DOVETAIL SLOTS, X-AXIS, QUICK RELEASE
MEASURING RANGE X/Y AXIS	350 x 250 mm
FOCUSING	80 mm
DIMENSIONS LxBxH mm	1200 x 1200 x 1900
RESOLUTION	0.001mm
MEASURING SYSTEM / PROTRACTOR	2+L/100 MICRONS
MEASURING SYSTEM	BUILT IN GLASS SCALES
ADVANCED DIGITAL READ OUT	ZERO SETTING, INCH / MM, ABS / INC, MEASUREMENT OF X, Y, ANGLES, LINES, DISTANCES, CIRCLES, SKEW
ILLUMINATION SYSTEM	ALL BULBS INDEPENDENTLY FAN COOLED. HIGH INTENSITY, TWIN BEAM DIRECT SURFACE ILLUMINATION WITH INTENSITY CONTROLLERS FOR VARIABLE BACKGROUND / FOREGROUND LIGHTING
PROFILE LAMP	ONE 250 W, 24 V
SURFACE LAMPS	TWO 250 W, 24 V
AMBIENT CONDITIONS	10 TO 40 DEGREES CELCIUS
POWER SUPPLY	AC 1 PHASE, 110V, 60HZ 1200 W
MASS	600 KG APPROX
OPTIONAL ACCESSORIES	GEOMETRIC DATA PROCESSOR, FIBRE OPTIC AUTO EDGE DETECTOR, SOFTWARE PC BASED MEASUREMENT SYSTEM, PAIR OF V- BLOCKS WITH CENTRES, VERTICAL WORK-PIECE HOLDER

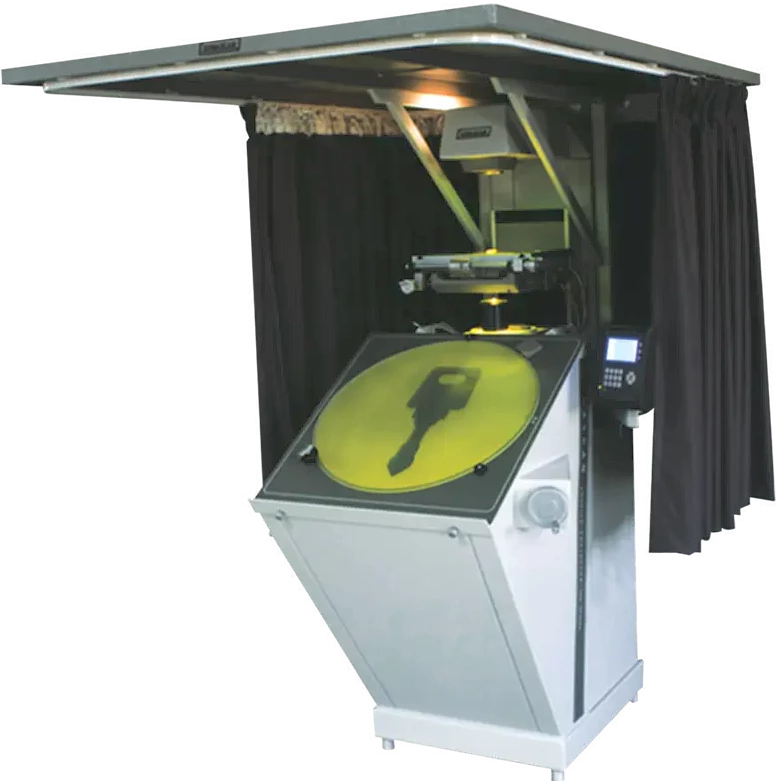

OpticaL comparator vertical PV 500/600 NEO

Horizontal Light Path
Heavy Duty Workstage
Heavy Duty Workstage

Applications include large
heavy components like lead screws
crank shafts, broaches, gears
engine blocks and similar components

Specialization Download Brochure

Specifications	OpticaL comparator vertical PV 500/600 NEO
SCREEN: FINE GRAIN GROUND GLASS	500 mm DIA
LENS AXIS	HORIZONTAL
ELECTRONIC PROTRACTOR	SWITCHABLE DEGREE / DECIMAL, 1 MINUTE / 0.01 DEGREE, DISPLAY RANGE: +/-360 DEGREE, ABS/INC,
	ZERO SETTING
MAGNIFICATIONS : STANDARD	10X
OPTIONAL	20X, 50X WITH 3 STATION TURRET FOR SAFETY, EASE OF USE
ON SCREEN ACCURACY	+/- 0.05% ON PROFILE AND SURFACE
WORK STAGE TABLE TOP AREA	550 x 200 mm, TWO DOVETAIL SLOTS, X-AXIS, QUICK RELEASE
MEASURING RANGE X/Y AXIS	350 x 250 mm
FOCUSING	80 mm
DIMENSIONS LxBxH mm	1200 x 1200 x 1900
RESOLUTION	0.001mm
MEASURING SYSTEM / PROTRACTOR	2+L/100 MICRONS
MEASURING SYSTEM	BUILT IN GLASS SCALES
ADVANCED DIGITAL READ OUT	ZERO SETTING, INCH / MM, ABS / INC, MEASUREMENT OF X, Y, ANGLES, LINES, DISTANCES, CIRCLES, SKEW
ILLUMINATION SYSTEM	ALL BULBS INDEPENDENTLY FAN COOLED. HIGH INTENSITY, TWIN BEAM DIRECT SURFACE ILLUMINATION WITH INTENSITY CONTROLLERS FOR VARIABLE BACKGROUND / FOREGROUND LIGHTING
PROFILE LAMP	ONE 250 W, 24 V
SURFACE LAMPS	TWO 250 W, 24 V
AMBIENT CONDITIONS	10 TO 40 DEGREES CELCIUS
POWER SUPPLY	AC 1 PHASE, 110V, 60HZ 1200 W
MASS	600 KG APPROX
OPTIONAL ACCESSORIES	GEOMETRIC DATA PROCESSOR, FIBRE OPTIC AUTO EDGE DETECTOR, SOFTWARE PC BASED MEASUREMENT SYSTEM, PAIR OF V- BLOCKS WITH CENTRES, VERTICAL WORK-PIECE HOLDER
